温度控制器TB40-1

  • Applicable for heating and cooling applications
  • For all types of thermocouples and resistance transducers
  • BluePort Front interface and BlueControl Software
  • Maintenance manager and error list
  • Alarm reset via RESET-key
  • Alarm reset via digital
  • Type tested to EN 14597 and cULus

The TB40-1 limit controller has been type tested to DIN standards.

The TB40-1 can be used for heating and refrigeration processes. It is suitable for all thermocouple types and resistance type sensors. It is particularly designed for use in:

All applications where an over or under temperature fault condition could present fire hazard or other hazard
Heating system in buildings to DIN EN 12828
Large hot-water boilers to DIN EN 12953-6
Thermal transfer plants with organic heat transfer media to DIN 4754
Oil-fired installations to DIN 4755

Product Category: Limit Controller

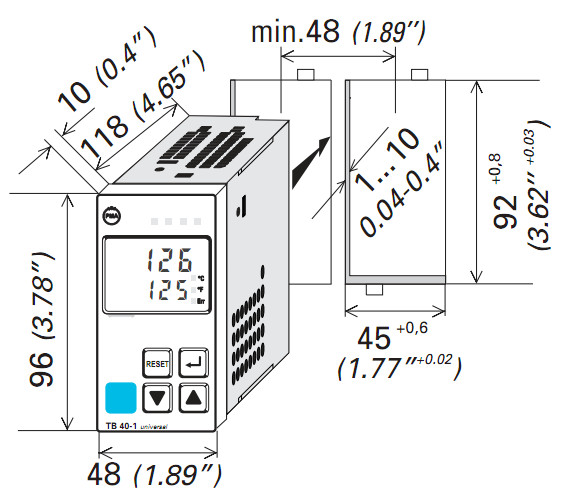

Dimensions and size: 96mm x 48mm x 118mm (HxWxD), 1/8 DIN
Connectors: Pins or screw terminals
Primary Input Type: Universal (TC, RTD, DC linear mA/mV)
Output Type: Relay
Max. Number of Outputs: 3
Control Type: Temperature limiter
Power Supply:

100–240V AC 50–60Hz

20-48V AC 50/60 Hz

22-65V DC

Panel Sealing: IP65
Certifications: CE, Type tested to EN 14597 (replaces DIN 3440), cULus
Software Tools: BlueControl

  • 热处理设备
  • 实验炉和工业炉
  • 化工设备
  • 实验仪器设备
